Material Handler Boom

Application:

Material handling boom arm fitted on excavator machine from 15 ton to 120 ton to lift bulk material with scrap grapple or unload sand with clamshell bucket.

Material Handler Boom image

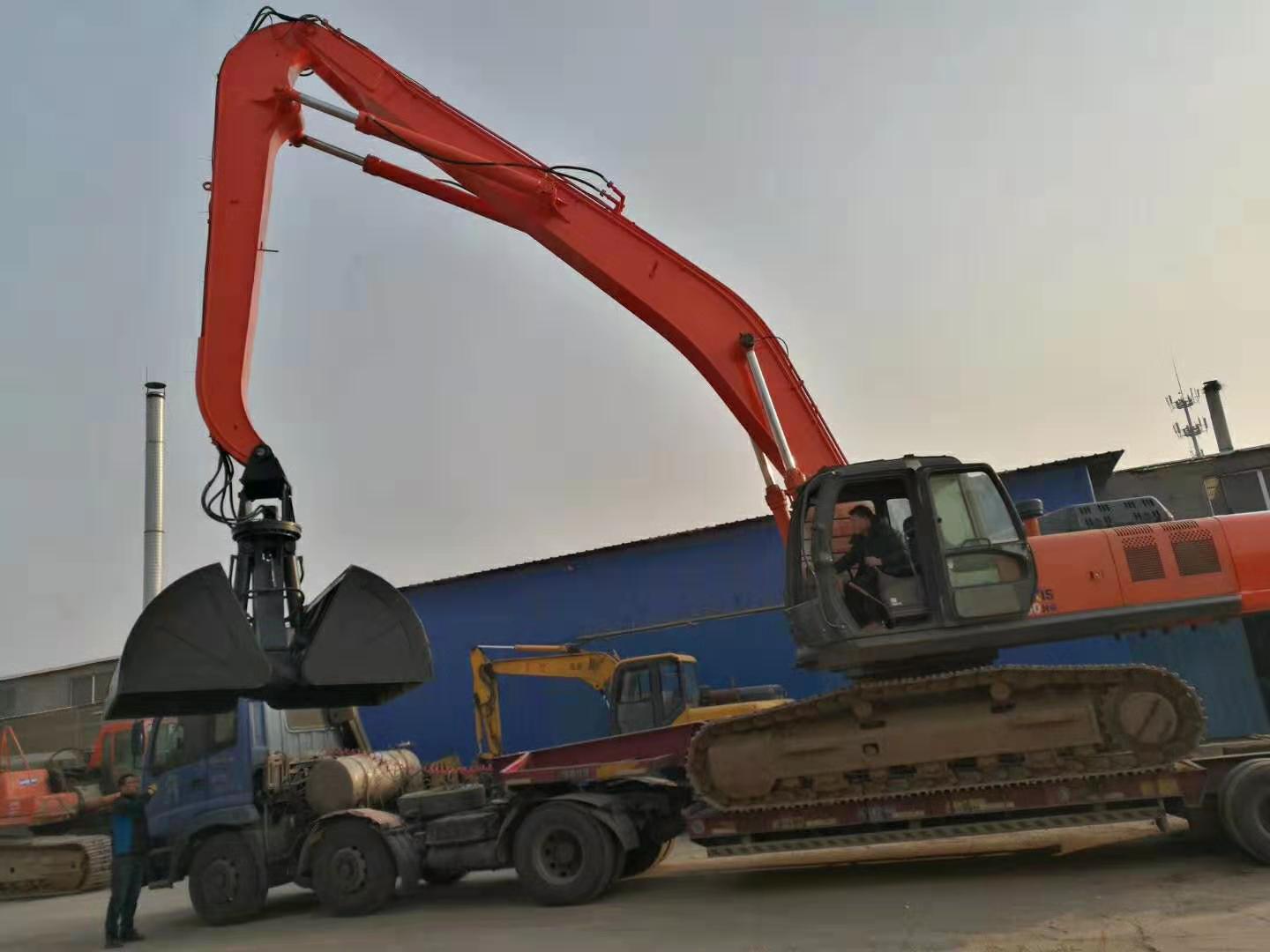

scrap excavator

Charactaristics:

  • Straight/Curved main boom design according to your working range requirement
  • Twin / single underslung cylinder fully exploit cylinder's force for material lifting.
  • Additional counterweight is available
  • Clamshell/orange peel grab/rock grapple are optional depond on application

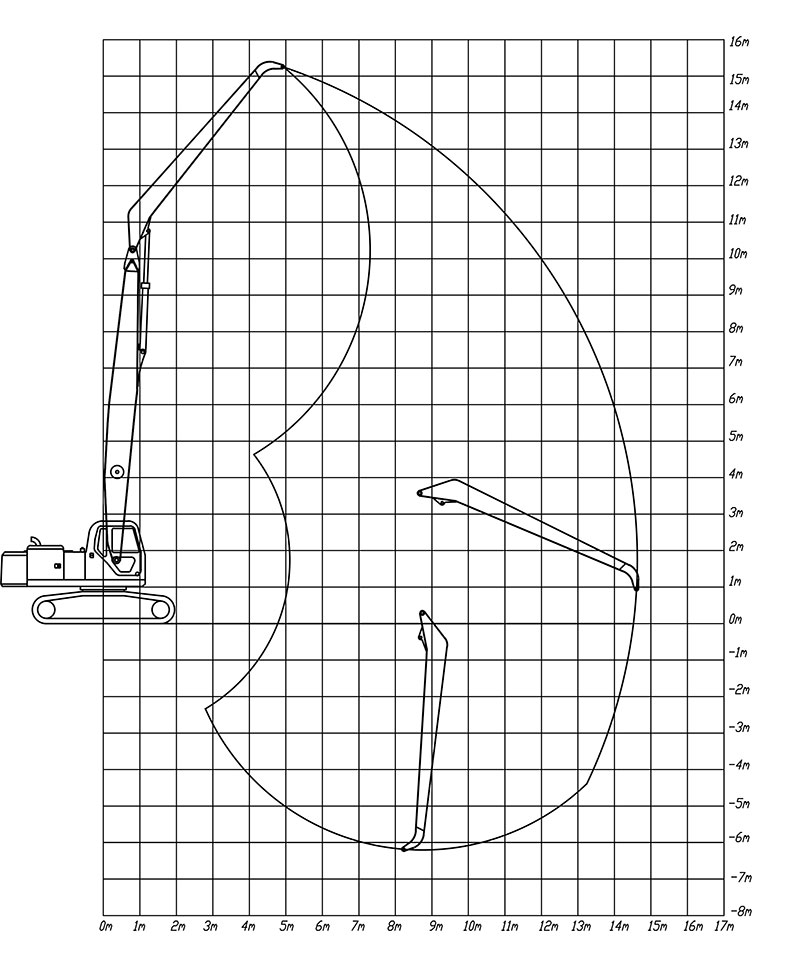

Parameter of Material Handler Booms

parameter of material handler booms

Excavator ClassBoom arm length(m)Max. Working Reach(arm point)Max. Working Height(arm point)Max. Working depth(arm point)
20 ton11.5m 37.7′11m 36′12.28m 40.3′5.68m 18.63′
25 ton13m 42.6′12.5m 41′13.7m 44.9′6.7m 22′
35 ton14.7m 48.2′14.2m 46.6′15.6m 51.2′6.15m 20.2′
47 ton16.8m 55.1′16.2m 53.1′17.5m 57.4′7.21m 23.6′

Our product can well fit these excavator brand:KOMATSU,HITACHI, CATERPILLAR,SUMITOMO, HYUNDAI, KOBELCO, KATO, SANY,DAEWOO,VOLVO etc.

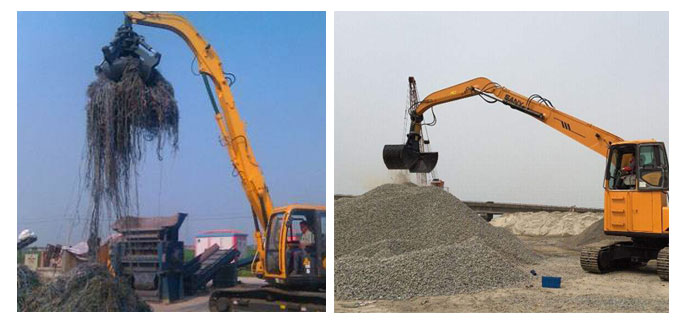

Material handling Boom case

material handler boom

material handler boom
