Hydraulic breaker

We manufacture light duty and heavy duty hydraulic breaker that is suitable for wide range of excavator and carrier

Charactaristics of Our hydraulic breaker

  1. ◆ Incorporate much advanced technology in hydraulic breaker: leading heat treatment technical, lower noise, durable main bodies, etc.
  2. ◆ Suitable with a wide range of excavators
  3. ◆ Versatile application including breaking rock, paving road, building demolition etc
  4. ◆ Easy use and easy maintenance
  5. ◆ Top type breaker is applied to special operation that in larger elevation angle at municipal project dismantling.

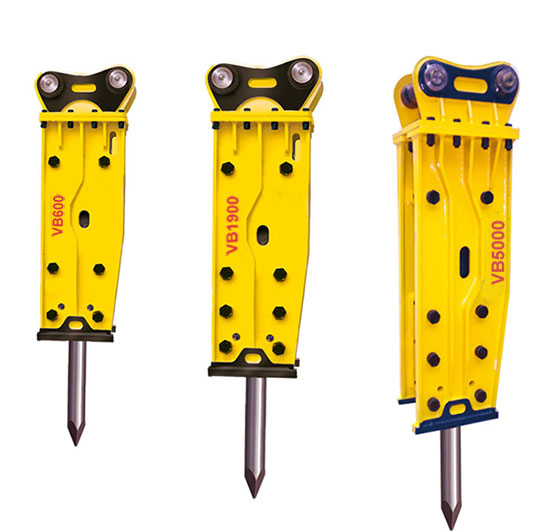

top hydraulic breaker

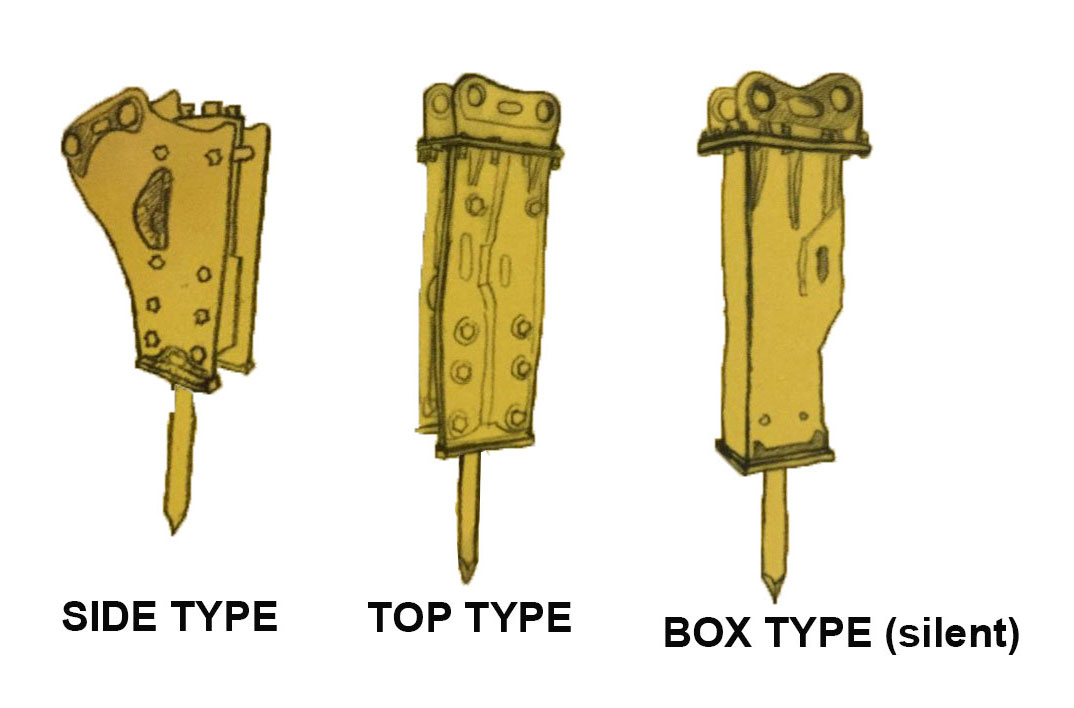

breaker type

Parameter of hydraulic breaker

ModelWeight(Kg)Length(Mm)Pressure(kg/cm2)Flux(L/Min)Rate(Bpm)Hose(Inch)Chisel(Mm)Suit(Ton)
VB200100/120110090-12015-25700-12001/245/531.2-3.0
VB4002981347110-14025-45500-9001/268/703.0-5.5
VB6004211528110-16030-45500-8001/2754.0-7.0
VB8005771920120-17045-85400-7003/4857.0-14
VB9009732260150-17080-120400-7003/410011-16
VB160018552695160-180120-160400-700113519-26
VB190019892810160-180130-170400-600114019-26
VB280024202895160-180150-190350-500115027-38
VB350027503152160-180170-220250-400115528-40
VB450031603310160-180200-300250-3501.2516536-45
VB500042103400160-180210-290200-3501.2517540-55
VB550047203400180-220220-300200-2501.2518550-60
VB600049103420180-220230-320180-2001.2519055-65
VB650061003700190-230360-450120-2001.2521065-100

Accessories

The standard free spare parts: two pcs of Chisel, two pcs of oil tube, one pc of Nitrogen Cylinder, a set of repair tools with tool box, a Nitrogen pressure gauge and a pair of gloves.

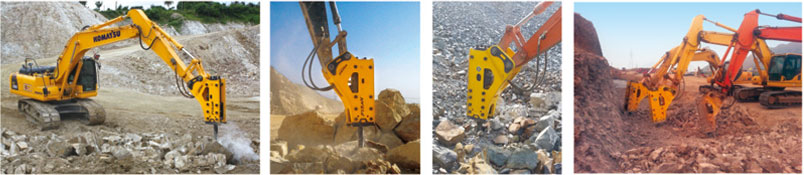

Case Of Hydraulic breaker

pyramid hydraulic breaker
