We can make excavator boom arm/stick same as original boom stick length, and we can do some modification
Longer Boom Stick enable your machine reach longer in forward and digging depth, the drawback is that it usually reduce arm crowd force, and lifting capacity.
Premise condition of Excavator Boom Stick modification is that force from boom stick and loaded attachment should not exceed standard excavator setup or say force from original boom stick and bucket setup. if you increase Boom arm length that mean lifting capacity need to be reduced according to bevel principle. Long Reach Boom Stick with a big bucket will cause excavator unstable and put excavator and operator at danger condition.
Shorter boom/arm options have an opposite effect. Shorter Boom Arm/Stick can with a bigger Bucket or other attachment and it has bigger arm crowd force.

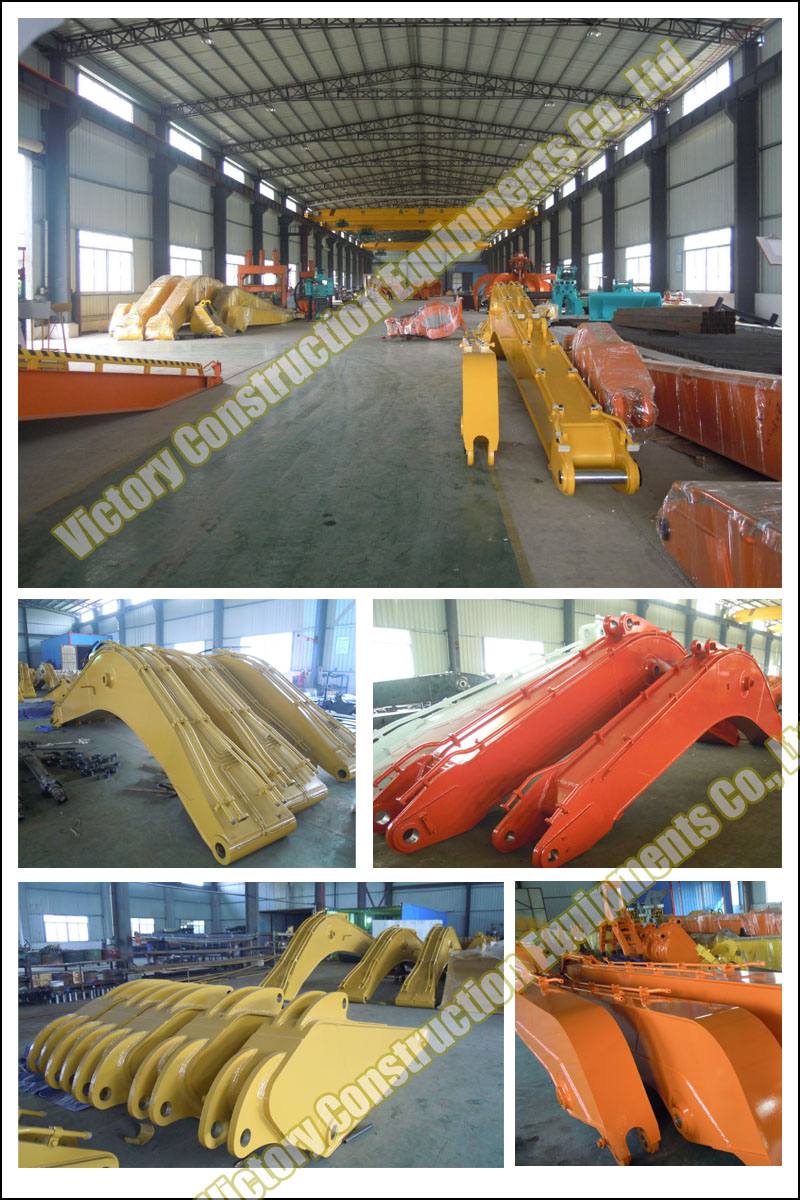

We as a Excavator Boom Stick and Attachment Manufacturer, we can design and make suitable boom and stick and bucket according to your application.

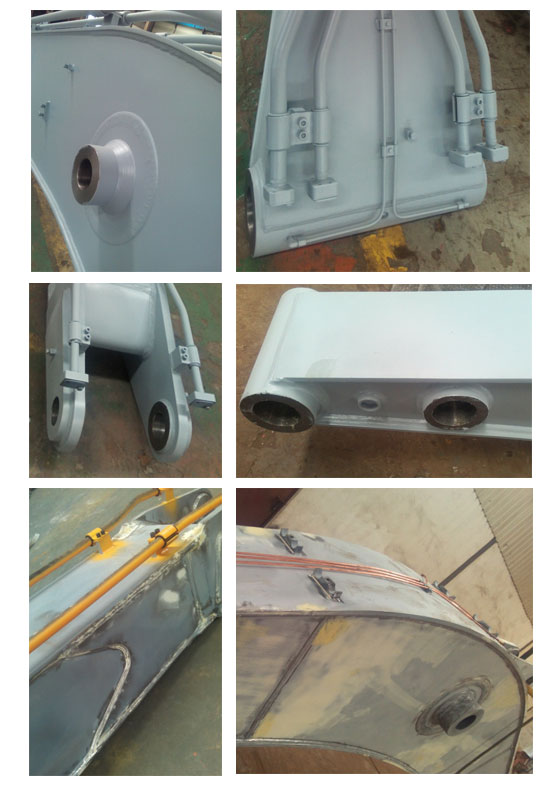

1, Our excavator boom arm designed on base of force analysis, Product drawing generated by CAD, engineer from Caterpiller company, 2, we have professional digital cutting machine to cut plates in good shape, 3, skilled welding worker with more than 10years welding experience. 4, diligent cleaning work before paint
Our product can well fit these excavator brand:KOMATSU,HITACHI, CATERPILLAR,SUMITOMO, HYUNDAI, KOBELCO, KATO, SANY,DAEWOO,VOLVO etc.
| Excavator Model | Boom Lenth(M) | Arm Length(M) |
|---|---|---|
| 10 ton | 4.4 | 2.91 |
| 12 ton | 4.6 | 3.12 |
| 20 ton | 5.7 | 3.75 |
| 22 ton | 5.85 | 3.96 |
| 25 ton | 6.15 | 4.05 |
| 30 ton | 6.47 | 4.118 |
| 33 ton | 6.15 | 4.21 |
| 35 ton | 6.43 | 4.185 |
| 40 ton | 7.55 | 4.425 |
| 45 ton | 7.12 | 4.43 |
